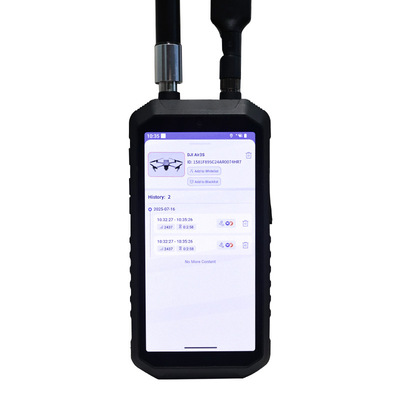

70Mhz-6200Mhz Portable 3km Passive Handheld Drone Detector Tracking And Positioning

MOQ: 1
Delivery Period: 5-8 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
ttsk
Certification
$3700-$4000
Model Number
ttskl03
Document
Spec-TTSKL03.pdf
Highlight:

6200Mhz Handheld Drone Detector

,

3km Handheld Drone Detector

,

70Mhz anti drone system

Product Description
Portable 70Mhz-6200Mhz 3 km Long Distance Passive Drone signal Detection System Tracking and Positioning UVA Drone Detection
Advanced Drone Tracking and Positioning Solution

A compact, portable system for passive detection, tracking, and positioning of UAVs with real-time monitoring capabilities.

Key Features
  • Passive Detection: Operates without emitting electromagnetic signals, ensuring no environmental impact
  • Precise Identification: Real-time detection of SN, model, geo-location, speed, altitude, and trajectory data
  • Multi-Target Tracking: Simultaneous tracking of drones and their remote controllers
  • Position Navigation: Real-time pilot location detection with one-click tracking
  • Security Management: Blacklist/whitelist functionality with alarm suppression for authorized drones
  • Network Integration: Supports platform connectivity for multi-device collaboration in wide-area scenarios
  • Wireless Communication: Enables instant inter-device communication for coordinated operations
  • Visual Monitoring: Records real-time drone video transmission feeds
  • Portable Design: Lightweight, compact construction with shock/drop resistance
Technical Specifications
Parameter Specification
Working Principle Passive detection (no signal emission)
Detection Bands 900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi
Sensitivity ≤-100dBm
Detection Distance 0-3km+ (environment and drone dependent)
Response Time ≤5 seconds
Simultaneous Detection ≥10 drones
Position Accuracy ≤3m (for decodable drones)
Supported Protocols DJI OC, Mavlink, Parrot, TBS CrossFire and others
Tracking Speed ≥60km/h (for decodable drones)
Physical Specifications 177*89*29.5mm (±2mm), ≤580g (without antenna)
Power System 12000mAh battery (3-4h operation), ≤3h charge time
Environmental Rating IP54, -20℃ to +50℃ operation

70Mhz-6200Mhz Portable 3km Passive Handheld Drone Detector Tracking And Positioning 0
