Vehicle Mounted Drone Detection And Jamming System With 5km Range 400W Power

MOQ: 1
Price: 35000
Standard Packaging: Packing: aviation transportation plastic box;
Delivery Period: 5-8 Work days
Payment Method: T/T
Supply Capacity: 500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
TATUSK
Model Number
TTSK-TDZ-10AB
Document
Spec-TTSK-FZ-10AB docx.docx
Highlight:

Vehicle Mounted drone detection and jamming system

,

5km drone detection and jamming system

,

400W anti drone jamming system

Product Description
Vehicle Mounted Anti-Drone Jamming System with 5km Range 400W Power and 360° Detection for Comprehensive UAV Countermeasures
Drone Detection And Jammer Equipment 5km Full Bands 400W Anti UVA
Fixed Anti-Drone Jamming System with 10KM Range and 70MHz-6GHz Full-Band Detection capability. Features 3KM handheld operation with 433MHz-6GHz Anti Drone Jamming System and operator locating functionality.
Technical Specifications
No. Name Performance Indicators
1 Detection Mode Passive detection, does not actively emit radio signals in detection mode
2 Detection Frequency 300MHz~6GHz
3 Detection Angle Horizontal 0°~360°, vertical -90°~90°
4 Detection Altitude 0～1200m
5 Detection Radius 5km (subject to variation depending on environment and drone model)
6 Detection Time ≤5s
7 Detection Power Consumption ≤100W
8 Jamming Distance 3km (subject to variation depending on environment and drone model)
9 Jamming Angle Selection Allows independent on/off control for multiple angles
10 Jamming Range Horizontal: 360°; vertical: -90° to +90°
11 Jamming Frequency Bands 900M/1.2GHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz
12 Operating Frequency Channel 1: (840±15) MHz to (930±15) MHz
Channel 2: (1535±15) MHz to (1635±15) MHz
Channel 3: (2380±15) MHz to (2520±15) MHz
Channel 4: (5130±15) MHz to (5370±15) MHz
Channel 5: (5725±15) MHz to (5885±15) MHz
Channel 6: (1080±15) MHz to (1200±15) MHz
13 Transmission Power Channel 1: (47±3) dBm
Channel 2: (44±3) dBm
Channel 3: (47±3) dBm
Channel 4: (44±3) dBm
Channel 5: (47±3) dBm
Channel 6: (44±3) dBm
14 Jamming Response Time ≤3s
15 Suppression Distance Ratio The maximum distance ratio between the system and the drone versus the drone and its controller should be no less than 15:1 in the absence of significant electromagnetic interference
16 Total Power Consumption ≤2300W
17 Mobile Power Supply Mobile power supply; in full-frequency transmission mode, continuous operation for ≥30 minutes
18 Power Supply Mode Supports 220V AC power or mobile power supply
19 High-Speed Operation Capable of detecting and countering drones while in high-speed motion
20 Map Positioning Equipped with an electronic map that can display the system's geographic location in real-time
21 Alarm Function Provides alarm notifications via information, sound, and light upon drone detection
22 Operating Temperature (-20~+60)±2℃
23 Storage Temperature (-60~+85)±2℃
24 Equipment Weight 64.25kg
System Overview
The vehicle-mounted integrated drone detection and countermeasure system is designed for drone detection, identification, and counteraction. The system integrates multiple technologies such as radio detection, protocol decoding, and spectrum scanning. By utilizing the characteristic signals received from drones, it enables detection and identification of unauthorized drones. Through radio interference and jamming technology, the system provides low-altitude security protection for surrounding convoys within a 3km radius, even at high speeds of up to 150 km/h.
Key Features
  • Jams drone's remote control, data transmission, video transmission, and navigation signals to force emergency landing
  • 360° Full-Frequency Detection and Jamming covering mainstream drone models
  • Modular design supporting vehicle-mounted, fixed, and portable operational modes
  • Low wind resistance design maintains stability at high speeds
  • Blacklist/Whitelist functionality with one-click marking
  • Flexible deployment on various vehicle types with standalone or networked operation
  • Military-grade quality withstands extreme temperatures (-60°C to +85°C)
  • Customized intelligent solutions available for specific defense requirements
  • Identifies common brands including DJI, AUTEL, Dahua, Haoxiang, and most market models
  • Passive detection technology with no electromagnetic signal emission
  • 24/7 operation in all weather conditions with 360° detection coverage

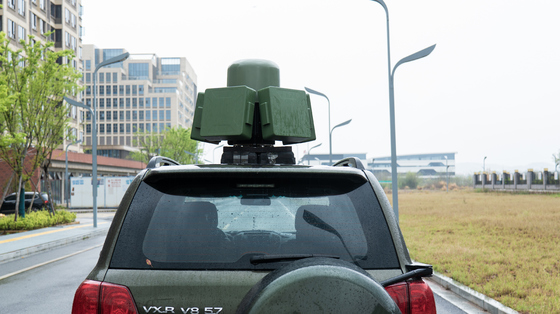

Product Images
Vehicle Mounted Drone Detection And Jamming System With 5km Range 400W Power 0
Manufacturing Facility
Vehicle Mounted Drone Detection And Jamming System With 5km Range 400W Power 1 Vehicle Mounted Drone Detection And Jamming System With 5km Range 400W Power 2 Vehicle Mounted Drone Detection And Jamming System With 5km Range 400W Power 3
Frequently Asked Questions
How long is the production lead time?
The production lead time varies depending on the product and order quantity. Generally, it takes around 7-15 days after receiving the deposit.
Can I customize the product?
Yes, power and frequency band can be customized according to your needs.
What is your payment term?
We accept T/T (Telegraphic Transfer) and PayPal. Payment terms are typically 30% deposit and 70% balance before shipment.
How do you ensure product quality?
We have a strict quality control process including raw material inspection, in-production checks, and final quality inspections.
What shipping methods are available?
We offer sea freight, air freight, and express courier (DHL, FedEx, UPS). We recommend the most suitable method based on your order.
Can I track my order?
Yes, we provide tracking numbers for all shipments.
Do you provide after-sales service?
Yes, we offer comprehensive after-sales support including technical assistance and warranty services.
