Vehicle Mounted Drone Detection And Jamming System With 3km RID Protocol Analysis

MOQ: 1
Price: 33566
Standard Packaging: Packing: aviation transportation plastic box
Delivery Period: 5-8Work days
Payment Method: T/T
Supply Capacity: 5000
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
TTSK
Model Number
TTSKF04
Document
TTSK-FZ-10AB -Specifcation ...05.pdf
Highlight:

3km Drone Detection And Jamming System

,

Vehicle Mounted Drone Detection And Jamming System

,

3km drone jamming device

Product Description

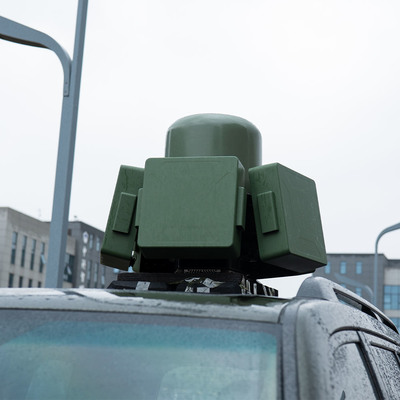

Vehicle-Mounted Unmanned Aerial Vehicle Detection and Countermeasure Equipment
Vehicle-Mounted UAV Countermeasure Equipment with 3km Jamming Distance 360° Interference and RID Protocol Analysis
RID Protocol Analysis 360° Interference & 3km Jamming Distance
Portable UAV Countermeasure Equipment with 433Mhz/700Mhz/900Mhz/1.2Ghz/1.5Ghz/2.4hmz/5.2Ghz/5.8Ghz detection capabilities. Features a 3KM full-band backpack anti-drone jammer with 2-in-1 detection & jamming functionality.
Vehicle Mounted Drone Detection And Jamming System With 3km RID Protocol Analysis 0
Specifications
Jamming Performance
Item Specification
Fixed Jamming Bands 900M/1.2GHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz
Jamming Distance ≥3 km (line-of-sight, 0.1W signal source, for DJI Mavic 3 with jamming ratio 2:1)
Response Time ≤5s
Additional Specifications
  • Total output power: 2300W
  • Power consumption: 100W
  • Power supply: AC90-260V, DC24-28V
  • Main engine weight: 8.5Kg (Manpack 10KG, Antenna 1.5KG, Control Box 0.3KG)
  • Size: 420 x 240 x 220 mm
  • Cooling System: Systematic Smart Cooling System
  • Jamming Source: Noise Technology
  • Humidity: 30%-95%
  • Running temperature: -20℃ to +60℃
  • Inside battery working 1.5h: 24V,25AH
  • Battery charger: 5A (Open the external switch to charge, automatically manage the charging current, full automatically disconnect)
  • Jamming Range: 0-3km
  • External Remote control Panel: shows the battery voltage, can switch on/off each band
Product Images
Vehicle Mounted Drone Detection And Jamming System With 3km RID Protocol Analysis 1 Vehicle Mounted Drone Detection And Jamming System With 3km RID Protocol Analysis 2 Vehicle Mounted Drone Detection And Jamming System With 3km RID Protocol Analysis 3 Vehicle Mounted Drone Detection And Jamming System With 3km RID Protocol Analysis 4
Company Profile
Vehicle Mounted Drone Detection And Jamming System With 3km RID Protocol Analysis 5 Vehicle Mounted Drone Detection And Jamming System With 3km RID Protocol Analysis 6 Vehicle Mounted Drone Detection And Jamming System With 3km RID Protocol Analysis 7
Frequently Asked Questions
1. How long is the production lead time?
The production lead time varies depending on the product and order quantity. Generally, it takes around 7-15 days after receiving the deposit. Please contact us for more accurate information based on your order.
2. Can I customize the product?
Yes, power and frequency band can be customized according to your needs. Please contact us with your specific requirements.
3. What is your payment term?
We accept various payment methods, including T/T (Telegraphic Transfer), PayPal. Payment terms are typically 30% deposit and 70% balance before shipment.
4. How do you ensure product quality?
We have a strict quality control process, including raw material inspection, in-production checks, and final quality inspections before shipment.
5. What shipping methods are available?
We offer multiple shipping options, including sea freight, air freight, and express courier (DHL, FedEx, UPS, etc.). We will recommend the most suitable method based on your order quantity and destination.
6. Can I track my order?
Yes, we will provide you with a tracking number once your order is shipped. You can use this number to track your order through the carrier's website.
7. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including technical assistance and warranty services. Please contact our customer service team for any issues related to your order.
