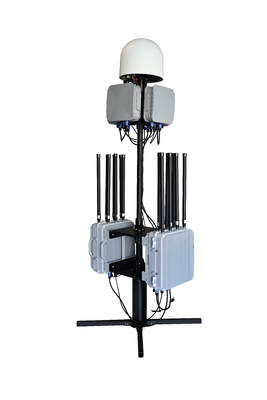

70MHz-6GHz Drone Jamming Device 10km Detection And 3km Jamming Spoofing Device

Products

Drone Detection And Jamming System

Counter Unmanned Aerial Systems

Contact Now

70MHz-6GHz Drone Jamming Device 10km Detection And 3km Jamming Spoofing Device

MOQ:	1 PCS
Delivery Period:	within 14 days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Brand Name

Model Number

TTSK-TDZ-2C

Document

Detection Frequency Bands:

70MHz-6GHz Full Frequency Band Scanning, Detection And Display

Key Detection Frequency Bands:

800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz

FPV Analog Video Transmission Signal Detection:

500MHz~6GHz Scan And Display

FPV Analog Video Transmission Signal Detection Distance:

≥1.5km (support Viewing Real-time Analog Video)

Detection Distance:

≥10km (depends On Working Conditions)

Jamming Distance:

≥3km (depends On Working Conditions)

Highlight:

6GHz drone jamming device

70MHz drone jamming device

10km anti drone jamming system

Product Description

70MHz-6GHz Fixed Drone 10km Detection And 3km Jamming Spoofing Device

TTSK-FZ-10AB

Equipment Usage

The vehicle-mounted integrated drone detection and countermeasure system provides comprehensive security by combining detection, identification, and countermeasure capabilities. Designed to address complex drone threats, it detects drone activity in real-time, identifies drone types and flight paths, and suppresses unauthorized or malicious activities through multiple countermeasures to protect critical areas or events.

Technical Specifications

No.	Name	Performance Indicators
1	Detection Mode	Passive detection, does not actively emit radio signals in detection mode
2	Detection Frequency	300MHz~6GHz
3	Detection Angle	Horizontal 0°~360°, vertical -90°~90°
4	Detection Altitude	0～1200m
5	Detection Radius	5km (subject to variation depending on environment and drone model)
6	Detection Time	≤5s
7	Detection Power Consumption	≤100W
8	Jamming Distance	3km (subject to variation depending on environment and drone model)
9	Jamming Angle Selection	Allows independent on/off control for multiple angles
10	Jamming Range	Horizontal: 360°; vertical: -90° to +90°
11	Jamming Frequency Bands	900M/1.2GHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz
12	Operating Frequency	Channel 1: (840±15) MHz to (930±15) MHz Channel 2: (1535±15) MHz to (1635±15) MHz Channel 3: (2380±15) MHz to (2520±15) MHz Channel 4: (5130±15) MHz to (5370±15) MHz Channel 5: (5725±15) MHz to (5885±15) MHz Channel 6: (1080±15) MHz to (1200±15) MHz
13	Transmission Power	Channel 1: (47±3) dBm Channel 2: (44±3) dBm Channel 3: (47±3) dBm Channel 4: (44±3) dBm Channel 5: (47±3) dBm Channel 6: (44±3) dBm
14	Jamming Response Time	≤3s
15	Suppression Distance Ratio	The maximum distance ratio between the system and the drone versus the drone and its controller should be no less than 15:1 in the absence of significant electromagnetic interference
16	Total Power Consumption	≤2300W
17	Mobile Power Supply	Mobile power supply; in full-frequency transmission mode, continuous operation for ≥30 minutes
18	Power Supply Mode	Supports 220V AC power or mobile power supply
19	High-Speed Operation	Capable of detecting and countering drones while in high-speed motion
20	Map Positioning	Equipped with an electronic map that can display the system's geographic location in real-time
21	Alarm Function	Provides alarm notifications via information, sound, and light upon drone detection
22	Operating Temperature	(-20~+60)±2℃
23	Storage Temperature	(-60~+85)±2℃
24	Equipment Weight	64.25kg
