Anti Drone Jamming System With 3KM Jamming Distance 70MHz-6GHz Full Frequency

MOQ: 1
Price: 55080
Standard Packaging: Packing: aviation transportation plastic box;
Delivery Period: 5-8 Work days
Payment Method: T/T
Supply Capacity: 5000
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
TATUSK
Model Number
TTSK-TDZ-2C
Document
TTSK-TDZ-2C specification.docx
Highlight:

70MHz Counter Unmanned Aerial Systems

,

3KM Counter Unmanned Aerial Systems

,

6GHz anti drone jamming system

Product Description
Anti Drone Jamming System Counter Unmanned Aerial Systems Fixed Drone Detection Jamming and Spoofing Integrated Equipment
3KM Handheld Drone Jammer & Detector 433MHz-6GHz Anti Drone Jamming System with Operator Locating
Main Product Specifications
No. Name Performance indicators
1 Detection frequency bands 70MHz-6GHz full frequency band scanning, detection and display
2 Key detection frequency bands 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
3 FPV analog video transmission signal detection 500MHz~6GHz scan and display
4 FPV analog video transmission signal detection distance ≥1.5km (support viewing real-time analog video)
5 Detection distance ≥10km (depends on working conditions)
6 Detection range The horizontal detection angle can reach 360° Vertical detection range: -90°～90°
7 Detection response time The time required from when the equipment is powered on to when it discovers and reports the drone ≤ 10s
8 Direction finding accuracy ≤±3° (RMS, Under site conditions with no obvious obstructions or obvious electromagnetic interference)
9 Detection display Drone distance, flight altitude, speed, position (including longitude and latitude, and required to be accurate to 1 meter), drone model, drone SN code, drone take-off point, drone return point, drone real-time trajectory, etc.
10 Jamming distance ≥3km (depends on working conditions)
11 Interference azimuth coverage The horizontal detection angle can reach 360°
12 Jamming frequency bands Omnidirectional jamming frequency bands: 420MHz-480MHz 50W 650MHz-730MHz 50W 740MHz-840MHz 50W 860MHz-930MHz 50W 1080MHz-1200MHz 50W 1200MHz-1340MHz 50W 1340MHz-1500MHz 50W 1560MHz-1620MHz 50W 4880MHz-5080MHz 50W 5100MHz-5300MHz 50W 5870MHz-6060MHz 50W 5720MHz-5860MHz 100W 2385MHz-2490MHz 100W
13 Directional jamming frequency bands 850MHz-950MHz 50W 2385MHz-2490MHz 50W 5720MHz -5860MHz 50W 5100MHz-5300MHz 30W
14 Jamming response time ≤7s
15 Cloud platform (1) Unattended and manual control functions: The system can automatically complete drone detection, identification, alerting, localization, and mitigation. The software automatically activates jamming devices, and based on the drone's location information from monitoring devices, it provides fully automated tracking interference. (2) Blacklist and whitelist functions (3) High-definition GIS system: It presents surrounding environment information, device deployment points, and other relevant details. (4) Equipped with log playback and statistical records: drone intrusion log, the log displays angle, alarm time, frequency information, drone intrusion records can be played back, and drone intrusion statistical reports can be provided; (5) Positioning and automatic north calibration: The system features GPS positioning, allowing the location to be marked on a map, and it is capable of automatic north calibration. (6) It has drone signal extraction and addition functions: it can automatically collect unknown drone signals, automatically extract parameters, and add them to the drone feature library through manual confirmation; (7) It has the ability to display device offline, standby, power-off, and abnormal status.
16 Jamming device (omnidirectional)*2 Weight: single device≤31kg
17 Size Length 520mm*width 465mm*height 275mm
18 Description Main device and secondary device (see the logo) to achieve omnidirectional jamming
19 Jamming device (directional)*4 Weight: single device≤5kg
20 Size Length320mm*width 320mm*height 110mm
21 Description Divided into four sides, four host devices in total (see the logo), to realize directional jamming in key frequency bands
22 Detection device weight ≤15kg
23 Detection device size Diameter 400mm*height 370mm
24 Device total weight ≤150kg
25 Device total size Diameter 1000mm*height 2400mm
26 Working temperature -40℃~60℃
Product Introduction
The fixed TTSK-TDZ-2C drone detection and jamming device consists of a drone detection system and a radio interference system, which can detect, identify, interfere with drones. It can make the drone hover, make an emergency landing or return, effectively protecting the safety of low-altitude airspace and preventing the drone from entering the defense zone. It has excellent detection and defense performance, long-distance working ability, no need for personnel on duty.
Product Features
  • Full frequency band detection: 70MHz-6GHz full frequency band detection, covering all drone models.
  • Super interference with FPV drones: Effective defense against radio frequency flight control and FPV drones, with outstanding interference effect.
  • Simulated image transmission interference capability: Effectively prevents the intrusion of drones using simulated image transmission
  • Multiple interference modes: Directional interference in key frequency bands and omnidirectional interference covering all frequency bands, effectively preventing the intrusion of high-power drones and non-standard frequency band drones.
  • Strong scalability: Expand and integrate radar, optoelectronics, navigation and deception and other equipment, support work by one equipment and by multiple equipment network.
  • Unattended: Realize all-weather automatic and intelligent execution of preset plans. When a drone is detected, it can quickly coordinate strikes outside the defense zone.
  • Military quality: Covered by aviation aluminum fuselage, no fear of high and low temperatures, strong environmental adaptability.
  • Signal collection: Built-in drone signal collection function, which can collect and learn unknown signals.
  • Customized services: Customized intelligent solutions according to needs to provide customers with better defense effects.
Product Images

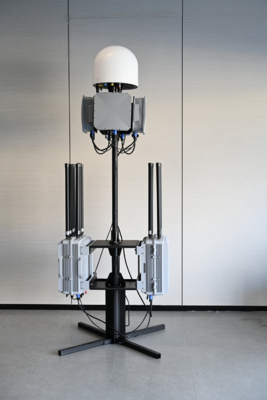

Anti Drone Jamming System With 3KM Jamming Distance 70MHz-6GHz Full Frequency 0
Company Profile
Anti Drone Jamming System With 3KM Jamming Distance 70MHz-6GHz Full Frequency 1 Anti Drone Jamming System With 3KM Jamming Distance 70MHz-6GHz Full Frequency 2 Anti Drone Jamming System With 3KM Jamming Distance 70MHz-6GHz Full Frequency 3
Frequently Asked Questions
How long is the production lead time?
The production lead time varies depending on the product and order quantity. Generally, it takes around 7-15 days after receiving the deposit. Please contact us for more accurate information based on your order.
Can I customize the product?
Yes, power and frequency band can be customized according to your needs. Please contact us with your specific requirements.
What is your payment term?
We accept various payment methods, including T/T (Telegraphic Transfer), PayPal. Payment terms are typically 30% deposit and 70% balance before shipment.
How do you ensure product quality?
We have a strict quality control process, including raw material inspection, in-production checks, and final quality inspections before shipment.
What shipping methods are available?
We offer multiple shipping options, including sea freight, air freight, and express courier (DHL, FedEx, UPS, etc.). We will recommend the most suitable method based on your order quantity and destination.
Can I track my order?
Yes, we will provide you with a tracking number once your order is shipped. You can use this number to track your order through the carrier's website.
Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including technical assistance and warranty services. Please contact our customer service team for any issues related to your order.
