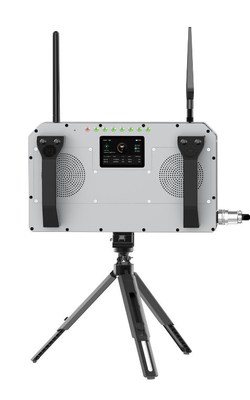

Portable UAV Detection System With 2km Detection Range 1km Jamming Distance

MOQ: 1
Delivery Period: 7-14days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Brand Name
TTSK
Model Number
TTSKLB11
Document
TTSKLB11--EN.docx
Detection Frequency:
300MHz-6GHz
Detection Range:
≥2 Km (line-of-sight, Low EMI Environment)
Fixed Jamming Bands:
845-935MHz, 1160-1300MHz, 1550-1640MHz, 2.4-2.5GHz, 5.15-5.25GHz, 5.710-5.920GHz
Jamming Distance:
≥1 Km (line-of-sight, 0.1W Signal Source, For DJI Mavic 3 With Jamming Ratio 2:1)
Navigation Spoofing:
GPS L1 / GLONASS R1 / BDS B1 / GALILEO E1
Effective Distance:
≥2 Km
Highlight:

Portable uav detection system

,

2km uav detection system

,

1km drone jamming device

Product Description
Portable UAV Detection System with 2 km Detection Range and 1 km Jamming Distance
Main Functions
  • Detects UAV communication signals and triggers an alert upon anomaly detection
  • Capable of jamming UAV remote control links, image transmission links, and satellite navigation signals for various operational scenarios
  • Supports spoofing functions with selectable direction for flexible UAV control
  • Parses DJI drones using OcuSync2 and OcuSync3 protocols, identifying model, frequency, and position
  • Equipped with LCD screen displaying battery level, detection data, and device status
  • Automatically logs detection data and jamming status, exportable via data cable
Product Specifications
Detection Performance
Item Specification
Detection Frequency 300MHz-6GHz
Detection Range ≥2 km (line-of-sight, low EMI environment)
Coverage 360°
Direction Finding Accuracy ≤20°
Alert Mode Sound and light
Response Time 3s
False Alarm Rate ≤1 time/12h
Jamming Performance
Item Specification
Fixed Jamming Bands 845-935MHz, 1160-1300MHz, 1550-1640MHz, 2.4-2.5GHz, 5.15-5.25GHz, 5.710-5.920GHz
Jamming Distance ≥1 km (line-of-sight, 0.1W signal source, for DJI Mavic 3 with jamming ratio 2:1)
Response Time ≤5s
Navigation Spoofing Performance
Item Specification
Working Frequency GPS L1 / GLONASS R1 / BDS B1 / GALILEO E1
Effective Distance ≥2 km
Response Time ≤3s
Coverage 360°
Spoofing Direction Selectable
Tags:

anti drone system,

drone jamming system,

drone detector
