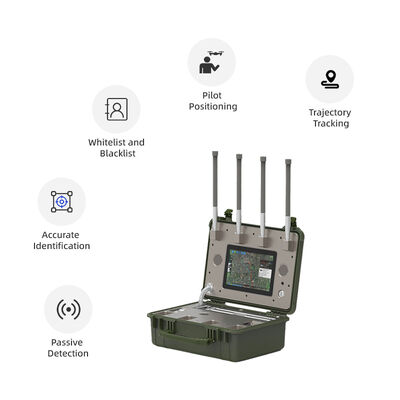

Professional UAV Detection System Long-Range Drone Detector Device
  • name
  • name
  • name
  • name
  • name
  • name

Professional UAV Detection System Long-Range Drone Detector Device

MOQ: 1
Price: $14,258
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Application:
Indoor & Outdoor, Airport ,Government Facility, Border Security, Event Protection
Feature:
Detector
Type:
Security Protection Products
Product Name:
UAV Detection System - Full Specification
Detection Method:
Passive (no Signal Transmission)
Detection Range:
Radius 5 Km, Coverage 10 Km
Detection Bands:
900 MHz / 1.4 GHz / 2.4 GHz / 5.2 GHz / 5.8 GHz
Detection Capacity:
≥30 Drones Simultaneously
Weight:
≤13 Kg
Coverage Angle:
360° Omnidirectional
Drone Database:
350+ Models Supported
Power Supply:
Internal Battery Or AC 220V
Product Description
Products Description
Professional UAV Detection System Long-Range Drone Detector Device
Item
Specification
Key Detection Frequency Bands
900MHz / 1.4GHz / 2.4GHz / 5.2GHz / 5.8GHz
Detection Method
Passive (No signal transmission)
Detection Distance
Radius: 5 km, Coverage: 10 km
Operating Modes
Mode 1: Aeroscope-like; Mode 2: CRPC
Sensitivity
Better than -115 dBm (25kHz)
Directivity
360° Omnidirectional
Supported Modulations
FM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSS
Simultaneous Detection Capability
≥30 drones
Detection Modes
Panoramic scanning, Channel scanning
Dynamic Range
70 dB
Power Supply
Internal battery (15 hours) or AC 220V
Operating Time
24/7 continuous or 15 hours on battery
Dimensions
470 × 357 × 176 mm (cover closed)
Weight
≤13 kg
Professional UAV Detection System Long-Range Drone Detector Device
Professional UAV Detection System Long-Range Drone Detector Device
Professional UAV Detection System Long-Range Drone Detector Device
Professional UAV Detection System Long-Range Drone Detector Device
Professional UAV Detection System Long-Range Drone Detector Device
Professional UAV Detection System Long-Range Drone Detector Device
Industry Applications
Professional UAV Detection System Long-Range Drone Detector Device
Company Profile
Professional UAV Detection System Long-Range Drone Detector Device
Professional UAV Detection System Long-Range Drone Detector Device
FAQ
Q1.Are you a factory or a trading company?
A:We are a factory ， located in Shenzhen, China, offline visit is very welcome!
Q2.What can you buy from me?
A:RF modules, systems, antennas, signal source,and other products. If you have more questions, please consult me
Q3.Why choose us?
A:.With nearly 10 years of experience in production and over 7 years of operational experience overseas ,Tatusky has
successfully，delivered over a hundred projects worldwide,based on tatusky’s reputation and strength in the communication and security industry
Q4.What about shipping times and modes of transportation?
A:Ships within 7 days after communication
Q5.Minimum order quantity?
A:1 piece can be customized and one piece can be shipped!
Q6:Can you do OEM/ODM?
A:Yes. We can do ODM based on your requirement. Normally, we can finish sampling in 10days after requirement confirm.Frequency is
customizable, power is customizable. logo, size, outline and other parameters are all customizable.
