Working Principle	Passive detection, does not emit any electromagnetic signals
Detection Bands	900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi；
Sensitivity	≤-100dBm
Detection Distance	0~3km+ (Different exist due to different environments and drone type)
Response Time	≤5s
Detection Quantity	≥10 Drones (Simultaneous)
Number of Drone Trajectories	≥10 Drones (Simultaneous)
Position Accuracy	≤3m (Available for the drones can be decoded)
Drone Library (Geo-Locaation)	DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands
Dynamic Detection Movement Speed	≥60km/h (Available for the drones can be decoded)
Screen Size	6.0 Inch
Battery Capacity	12000mAh
Endurance	3～4h
External Interface	Type-C, SMA antenna connector (external screw and internal hole)2, 3.5mm audio output connector1, SIM card*1
Charging Power	DC9V, 2A
Charging Time	≤3h（0%-100%）

FAQ

Q1. Could I get a sample before bulk order?

Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.

Q3. Do you accept OEM/ODM order?

Yes, we can customize the brand logo, colors, and frequencies.

7inch Touchscreen Portable FPV Drone Detector with 70MHz-6.2GHz Full Band Video Capture & Storage

Contact Now

900MHz/1.4GHz/2.4GHz/5.2GHz/5.8GHz 10KM Portable Detector UAV FPV Dji Tracking Route UAV Detection and Positioning

Contact Now

10KM 900MHz/1.4GHz/2.4GHz/5.2GHz/5.8GHz Portable Detector UAV FPV Dji Tracking Route UAV Detection and Positioning

Contact Now

500MHz-6GHz FPV Video Capture and 70MHz-6GHz Portable Detection System 1.5KM Range for UAV Critical Infrastructure Protection

Contact Now

Radius 1.5KM 70MHz-6.2GHz Handheld Drone Detector UAV FPV Dji WIdeband Scanner Tracking Route UAV Detection and Positioning

Contact Now

Full-Band Mobile Airspace Security Solution Handheld Detector for UAV/FPV/DJI Identification, Tracking & Route Mapping

Contact Now

10KM 900MHz/1.4GHz/2.4GHz/5.2GHz/5.8GHz Portable Drone Detection Device with 4+ Hours Battery 18kg Weight Indoor/Outdoor Use

Contact Now

PRODUCTS DETAILS

Products

Drone Detection System

Handheld Drone Detector

Portable Drone Detector

Fixed Drone Detection System

Anti FPV Module

GaN Module

LDMOS Module

Wideband Module

Detecting Drone Module

Signal Source Module

Anti-Drone Antenna

RF Power Amplifier

Fixed UAV Detection System

Wearable Drone Detection

Handheld drone detection

Lora GaN Module

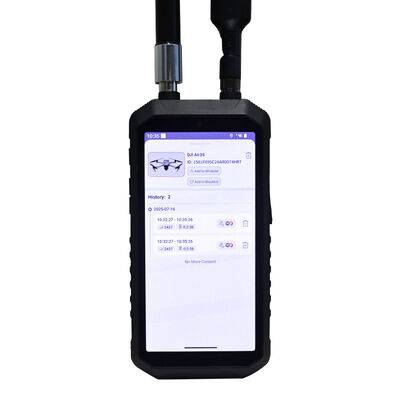

3KM Location Portable Drone Detection and Positioning Facility

MOQ:	1
Price:	$4,100-4,300

Detail Information

Product Description

Detail Information

Place of Origin

China

Application:

Indoor & Outdoor

Feature:

Detector

Product Name:

Drone Detector

Function:

Alarm, Location, Tracking

Frequency:

900MHz 1.2GHz 2.4GHz 5.2GHz 5.8GHz Wifi

Detection Range:

3km

Battery Life:

6 Hours

Weight:

650± 10g

Working Temperature:

- 25~40℃

Minimum Order Quantity:

Price:

$4,100-4,300

Product Description

Working Principle	Passive detection, does not emit any electromagnetic signals
Detection Bands	900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi；
Sensitivity	≤-100dBm
Detection Distance	0~3km+ (Different exist due to different environments and drone type)
Response Time	≤5s
Detection Quantity	≥10 Drones (Simultaneous)
Number of Drone Trajectories	≥10 Drones (Simultaneous)
Position Accuracy	≤3m (Available for the drones can be decoded)
Drone Library (Geo-Locaation)	DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands
Dynamic Detection Movement Speed	≥60km/h (Available for the drones can be decoded)
Screen Size	6.0 Inch
Battery Capacity	12000mAh
Endurance	3～4h
External Interface	Type-C, SMA antenna connector (external screw and internal hole)2, 3.5mm audio output connector1, SIM card*1
Charging Power	DC9V, 2A
Charging Time	≤3h（0%-100%）

FAQ

Q1. Could I get a sample before bulk order?

Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.

Q3. Do you accept OEM/ODM order?

Yes, we can customize the brand logo, colors, and frequencies.
