70-6000MHz Digital RF Signal Source for Counter UAV & Anti Drone Systems
  • name
  • name
  • name
  • name
  • name
  • name

70-6000MHz Digital RF Signal Source for Counter UAV & Anti Drone Systems

MOQ: 1
Price: $1,415-1,430
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
tatusky
Model Number
GaN
Type:
RF Module
Product Name:
Wideband Amplifer Module
Function:
Anti Uav
Scan Speed:
2.34ms To Scan 2000MHz Bandwidth
Signal Bandwidth:
50-400MHz
Frequency:
700-600MHz
Operating Current:
≤0.5A (@12.0V)
Dimensions:
114mm X 63.5mmx19.5mm
Power Supply Voltage:
12-28V
MOQ:
1 Pcs
Brand:
TTSK
Product Description
Products Description
Wideband Precision for Anti-Drone Systems
— 70~6000MHz Digital Signal Source
70-6000MHz Digital RF Signal Source for Counter UAV & Anti Drone Systems
70-6000MHz Digital RF Signal Source for Counter UAV & Anti Drone Systems

Industry Pain Points
Traditional anti-drone methods often block with legitimate devices during wideband operations, causing collateral damage and compliance risks.




Our Advantages
As the core signal source for anti-drone systems, its “Spectrum Windowing” precisely protects civilian bands, ensuring effective and safe electromagnetic operations.
70-6000MHz Digital RF Signal Source for Counter UAV & Anti Drone Systems

Industry Pain Points:Single-function devices lack flexible spectrum strategies and rapid programming, unable to switch quickly between prevention, expulsion, or guidance tasks, leading to slow response against complex drone threats.
Our Advantages:Features deep software programmability. Users can customize frequency, bandwidth, power, and windowing strategies, enabling one-click switching between preset spectrum profiles for adaptive, full-process response.

70-6000MHz Digital RF Signal Source for Counter UAV & Anti Drone Systems
Specifications
Item
Specification
Frequency Range
70MHz ~ 6000MHz
Signal Bandwidth
50MHz ~ 400MHz

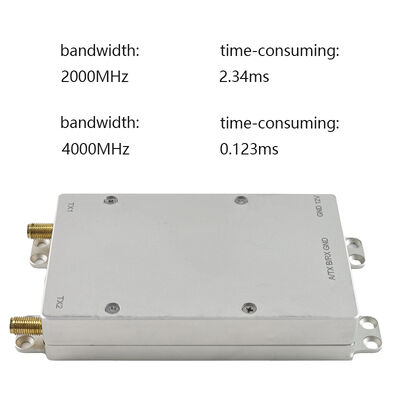

Scan Speed (Example)
2.34ms to scan 2000MHz bandwidth
Output Power Range
-10dBm ~ +3dBm (Customizable)
Digital Attenuation Range
0 ~ 10dB
Power Supply Voltage
12.0V ~ 28.0V (Nominal 12V)
Operating Temperature
-25℃ ~ +65℃
Operating Current
≤0.5A (@12.0V)
RF Output Interface
TX1, TX2 (SMA-K)
Control & Power Interface
DB2ERC-2.54-3P (RS485), Type-C, DC Power
Dimensions
114mm × 63.5mm × 19.5mm
Application
70-6000MHz Digital RF Signal Source for Counter UAV & Anti Drone Systems
Company Profile
70-6000MHz Digital RF Signal Source for Counter UAV & Anti Drone Systems
70-6000MHz Digital RF Signal Source for Counter UAV & Anti Drone Systems
70-6000MHz Digital RF Signal Source for Counter UAV & Anti Drone Systems
Why Choose Us
70-6000MHz Digital RF Signal Source for Counter UAV & Anti Drone Systems
FAQ
Q1: What is the frequency range of the module? A: 70MHz to 6000MHz, covering a broad spectrum suitable for various wireless system testing and management scenarios.
Q2: What is the "Spectrum Windowing" function? A: It is an advanced spectrum management feature. It allows the module to create protected "silent windows" within its operating band, ensuring zero signal emission in those specific frequencies to protect critical services.
Q3: How many protected bands ("windows") can be set simultaneously? A: Currently, up to 5 independent protected bands can be configured.
Q4: Is the output power adjustable? A: Yes, the output power is adjustable from -10dBm to +3dBm and features 0-10dB of digital step attenuation for precise signal level control.
Q5: What are the cooling requirements? A: The module uses a compact, fanless design. Adequate heat dissipation, such as a heatsink or system airflow, is recommended for optimal long-term stability.
Q6: Is control software provided? A: Yes, supporting configuration software is provided for easy setup of frequency, bandwidth, output power, windowing parameters, and more.
Q7: Are custom parameters supported? A: Yes. We offer customization services for parameters like frequency and power based on specific project requirements.
