Handheld Drone Detector With 100MHz-6GHz Passive Detection 3km Range IP54 Rating

Products

Drone Detection And Jamming System

Counter Unmanned Aerial Systems

Contact Now

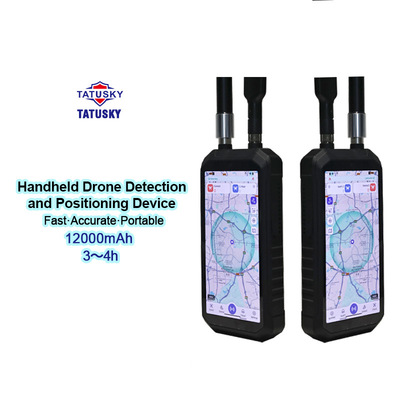

Handheld Drone Detector With 100MHz-6GHz Passive Detection 3km Range IP54 Rating

MOQ:	1
Price:	4200
Standard Packaging:	Packing: aviation transportation plastic box;
Delivery Period:	5-8 Work days
Payment Method:	T/T
Supply Capacity:	5000

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

TATUSK

Model Number

TTSKL03

Document

Highlight:

6GHz Handheld Drone Detector

100MHz Handheld Drone Detector

3km drone detection system

Product Description

Factory Handheld Drone Detector 100MHz-6GHz Passive Drone Detection System

Advanced pilot tracking and positioning device for comprehensive low-altitude protection.

Technical Specifications

Working Principle	Passive detection, does not emit any electromagnetic signals
Detection Bands	900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi
Sensitivity	≤-100dBm
Detection Distance	0~3km+ (varies by environment and drone type)
Response Time	≤5s
Detection Quantity	≥10 Drones (Simultaneous)
Number of Drone Trajectories	≥10 Drones (Simultaneous)
Position Accuracy	≤3m (for decodable drones)
Drone Library (Geo-Location)	DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands
Dynamic Detection Movement Speed	≥60km/h (for decodable drones)
Screen Size	6.0 Inch
Battery Capacity	12000mAh
Endurance	3～4h
External Interface	Type-C, SMA antenna connector (external screw and internal hole)2, 3.5mm audio output connector1, SIM card*1
Charging Power	DC9V, 2A
Charging Time	≤3h(0%-100%)
Power Consumption	≤15W
Size	177mm * 89mm * 29.5mm(±2mm)
Weight	≤580g(±0.05kg,without antenna) ≤46g per antenna
Operation Temperature	-20℃ to +50℃
Storage Environment	15～25℃ RH25～65%
IP Level	IP54

Product Introduction

Based on CRPC 2.0 technology, this device uses a deeper data chain decoding solution to analyze and extract real-time flight attribute information. It accurately identifies the drone's graphic & video stream, SN number, geo-location, trajectory, altitude, speed and remote control position, enabling quick and accurate detection, identification and location of unauthorized drones. The integrated design is compact, lightweight, and portable, making it suitable for various low-altitude protection scenarios.

Working Modes

Mode 1 (Aeroscope-like): Supports DJI, some Autel, Parrot, and Skylink drones. Provides detailed drone information including model, route, latitude and longitude, altitude, and pilot location.
Mode 2 (CRPC Standard Software): Triggers an alarm when a drone enters the alert zone, without displaying detailed drone or pilot information.

Key Features

Passive Detection: Receives only, no electromagnetic signal emission
Precise Identification: Real-time drone SN, model, geo-location, speed, altitude, and trajectory
Trajectory Tracking: Multi-target trajectory and pilot tracking
Position Navigation: Real-time pilot position detection with one-click tracking
Black and White List: Customizable drone identification lists
Network Management: Multi-device collaboration for wide-range prevention
Wireless Intercom: Instant communication for collaborative operations
Graphic Stream: DIY graphic transmission detection and recording
Compact and Portable: Lightweight, shockproof, and drop-proof design

Product Images

Manufacturing Facility

Tatusky Technology Co., Ltd. specializes in comprehensive low-altitude airspace defense solutions. Our products are designed for urban security, sensitive site protection, and event safety scenarios, featuring rapid deployment and efficient threat mitigation.

Our capabilities include UAV identification, multi-target tracking, RF jamming, and GNSS spoofing, with support for multi-platform collaboration and remote management. We are committed to innovation in urban airspace security technology.

Frequently Asked Questions

How long is the production lead time?

Generally 7-15 days after receiving deposit. Contact us for specific timing based on your order.

Can I customize the product?

Yes, power and frequency band can be customized. Please contact us with your requirements.

What is your payment term?

30% deposit and 70% balance before shipment. We accept T/T and PayPal.

How do you ensure product quality?

Strict quality control including material inspection, production checks, and final inspection.

What shipping methods are available?

Sea freight, air freight, and express courier (DHL, FedEx, UPS). We'll recommend the best option.

Can I track my order?

Yes, we provide tracking numbers for all shipments.

Do you provide after-sales service?

Yes, we offer technical assistance and warranty services.
