Handheld Integrated Anti Drone Gun Drone Detection, Jamming & Spoofing Device
  • name
  • name

Handheld Integrated Anti Drone Gun Drone Detection, Jamming & Spoofing Device

MOQ: 1
Payment Method: T/T
Detail Information
Product Description
Detail Information
Detection Mode:
Passive Detection
Detection Frequency Range:
400MHz--6GHz
Detection Distance:
0-3km
Azimuth Accuracy:
10°(RMS)
Jamming Frequencies:
433MHz，900MHz，1.2GHz，1.5GHz，2.4GHz，5.2GHz，5.8GHzSupport Custom Frequency Bands
Jamming Distance:
0-2km
Highlight:

handheld anti drone gun

,

drone jamming spoofing device

,

portable drone detection jammer

Product Description

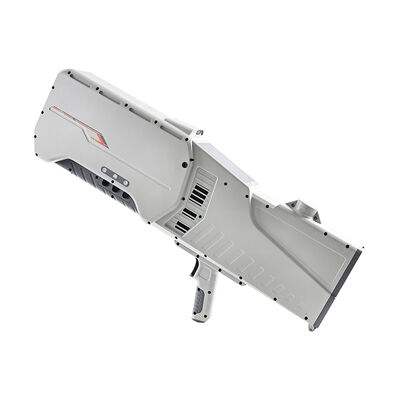

Handheld Integrated Anti-Drone Gun: Drone Detection, Jamming & Spoofing Device
Model: TTSK-TL-TDY-3.0
Product Overview
The handheld integrated drone detection, jamming, and spoofing device combines powerful long-range counter-UAV capabilities with a lightweight, user-friendly design. This comprehensive system provides multi-layer airspace defense, enabling detection, identification, positioning, early warning, direction finding, signal jamming, and navigation spoofing functions in a single unit. It effectively neutralizes unauthorized drones without affecting the surrounding environment, offering an efficient and portable low-altitude defense solution for military, police, aviation, energy facilities, and large-scale events.
Handheld Integrated Anti Drone Gun Drone Detection, Jamming & Spoofing Device 0
Key Features
  • High Integration: All-in-one system combining detection, warning, direction finding, jamming, and spoofing functions
  • Accurate Identification: Advanced technology for precise identification of drone brand, model, and frequency band
  • High-Performance Touch Screen: 5.5-inch display with high brightness for clear visibility in outdoor sunlight
  • Map Mode: Visual tracking of drone flight trajectories and positions for strategic defense planning
  • Dual Battery Design: Hot-swappable batteries ensure uninterrupted operation during extended use
  • High-Precision Direction Finding: Centimeter-level positioning accuracy for enhanced defense effectiveness
Technical Specifications
Item Parameter Remark
Detection Mode Passive detection
Detection Frequency Range 400MHz–6GHz
Detection Distance 0-3km Varies by environment and drone type
Azimuth Accuracy 10°(RMS)
Jamming Frequencies 433MHz, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz Support custom frequency bands
Jamming Distance 0-2km Varies by environment and drone type
Jamming Frequency Band and Power 430MHz–440MHz: 10w
840MHz–930MHz: 30w
1170MHz–1280MHz: 10w
1550MHz–1620MHz: 10w
2400MHz–2485MHz: 50w
5150MHz–5350MHz: 30w
5725MHz–5850MHz: 50w
Jamming Coverage Angle Horizontal: 40° Vertical: 25°
Spoofing Bands GPS-L1 GLONASS-L1 BDS-B1
Spoofing Distance 0-1km Varies by environment and drone type
Physical & Operational Parameters
Item Parameter Remark
Device Dimensions 805mm * 120mm * 395mm
Weight ≤7kg Including battery
Power Supply Built-in battery: 28.8V/3000mAh
AC: 110-240V, 50/60Hz, 3.3A
Power Consumption ≤500w (full-band jamming)
Operating Temperature -20℃ – +45℃
IP Level IP65
Tags:

anti drone system,

anti jammer drone,

anti jamming drone

Recommended Products
Vehicle Mounted UAV Jammer With 300M-6Ghz Full Band 8-12 Bands 400W Anti Drone Equipment Video

Vehicle Mounted UAV Jammer With 300M-6Ghz Full Band 8-12 Bands 400W Anti Drone Equipment

Contact Now
4-8 Bands Portable Drone Jammer Anti Drone System For 433Mhz 1.5g 2.4g 5.8g Signal Suppression Video

4-8 Bands Portable Drone Jammer Anti Drone System For 433Mhz 1.5g 2.4g 5.8g Signal Suppression

Contact Now
Vehicle Mounted Anti Drone Devices With 45 Degree Antenna Layout 150W 3 4 Jamming Modules

Vehicle Mounted Anti Drone Devices With 45 Degree Antenna Layout 150W 3 4 Jamming Modules

Contact Now
3KM Handheld Drone Jammer Anti Drone Jamming System With 433MHz–6GHz 500m-1500m 30W Video

3KM Handheld Drone Jammer Anti Drone Jamming System With 433MHz–6GHz 500m-1500m 30W

Contact Now
3-8dBi Vehicle Mounted UAV FPV Jammer With 400W Output Power 300-2000m Jamming Distance Video

3-8dBi Vehicle Mounted UAV FPV Jammer With 400W Output Power 300-2000m Jamming Distance

Contact Now
Portable 200-400W Drone Jammer With 433Mhz To 5.8Ghz Full Band Jamming Anti UAV Device Video

Portable 200-400W Drone Jammer With 433Mhz To 5.8Ghz Full Band Jamming Anti UAV Device

Contact Now
Gun Type Anti Drone Device With 3KM Range Portable Jammer Handheld 900M 1.2G 1.5G 2.4G Video

Gun Type Anti Drone Device With 3KM Range Portable Jammer Handheld 900M 1.2G 1.5G 2.4G

Contact Now
products
PRODUCTS DETAILS
Products

Backpack Drone Jammer

Drone Suppressor

Anti Drone System

Anti Drone Jammer

Portable Jammer

Vehicle Mounted Jammer

Handheld Drone Jammer

Drone Detection System

Handheld Drone Detector

Portable Drone Detector

Drone Detection Device

Anti-Drone System

Drone Detection And Jamming System

Drone Spoofing System
Handheld Integrated Anti Drone Gun Drone Detection, Jamming & Spoofing Device
  • name
  • name
Handheld Integrated Anti Drone Gun Drone Detection, Jamming & Spoofing Device
MOQ: 1
Payment Method: T/T
Detail Information
Product Description
Detail Information
Detection Mode:
Passive Detection
Detection Frequency Range:
400MHz--6GHz
Detection Distance:
0-3km
Azimuth Accuracy:
10°(RMS)
Jamming Frequencies:
433MHz，900MHz，1.2GHz，1.5GHz，2.4GHz，5.2GHz，5.8GHzSupport Custom Frequency Bands
Jamming Distance:
0-2km
Minimum Order Quantity:
1
Payment Terms:
T/T
Highlight

handheld anti drone gun

,

drone jamming spoofing device

,

portable drone detection jammer

Product Description
Handheld Integrated Anti-Drone Gun: Drone Detection, Jamming & Spoofing Device
Model: TTSK-TL-TDY-3.0
Product Overview
The handheld integrated drone detection, jamming, and spoofing device combines powerful long-range counter-UAV capabilities with a lightweight, user-friendly design. This comprehensive system provides multi-layer airspace defense, enabling detection, identification, positioning, early warning, direction finding, signal jamming, and navigation spoofing functions in a single unit. It effectively neutralizes unauthorized drones without affecting the surrounding environment, offering an efficient and portable low-altitude defense solution for military, police, aviation, energy facilities, and large-scale events.
Handheld Integrated Anti Drone Gun Drone Detection, Jamming & Spoofing Device 0
Key Features
  • High Integration: All-in-one system combining detection, warning, direction finding, jamming, and spoofing functions
  • Accurate Identification: Advanced technology for precise identification of drone brand, model, and frequency band
  • High-Performance Touch Screen: 5.5-inch display with high brightness for clear visibility in outdoor sunlight
  • Map Mode: Visual tracking of drone flight trajectories and positions for strategic defense planning
  • Dual Battery Design: Hot-swappable batteries ensure uninterrupted operation during extended use
  • High-Precision Direction Finding: Centimeter-level positioning accuracy for enhanced defense effectiveness
Technical Specifications
Item Parameter Remark
Detection Mode Passive detection
Detection Frequency Range 400MHz–6GHz
Detection Distance 0-3km Varies by environment and drone type
Azimuth Accuracy 10°(RMS)
Jamming Frequencies 433MHz, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz Support custom frequency bands
Jamming Distance 0-2km Varies by environment and drone type
Jamming Frequency Band and Power 430MHz–440MHz: 10w
840MHz–930MHz: 30w
1170MHz–1280MHz: 10w
1550MHz–1620MHz: 10w
2400MHz–2485MHz: 50w
5150MHz–5350MHz: 30w
5725MHz–5850MHz: 50w
Jamming Coverage Angle Horizontal: 40° Vertical: 25°
Spoofing Bands GPS-L1 GLONASS-L1 BDS-B1
Spoofing Distance 0-1km Varies by environment and drone type
Physical & Operational Parameters
Item Parameter Remark
Device Dimensions 805mm * 120mm * 395mm
Weight ≤7kg Including battery
Power Supply Built-in battery: 28.8V/3000mAh
AC: 110-240V, 50/60Hz, 3.3A
Power Consumption ≤500w (full-band jamming)
Operating Temperature -20℃ – +45℃
IP Level IP65
Tags:

anti drone system,

anti jammer drone,

anti jamming drone
